Model Whirlpool 1313^0A GAS RANGE – Common Parts & Diagrams
03 - MAIN TOP
05 - BODY

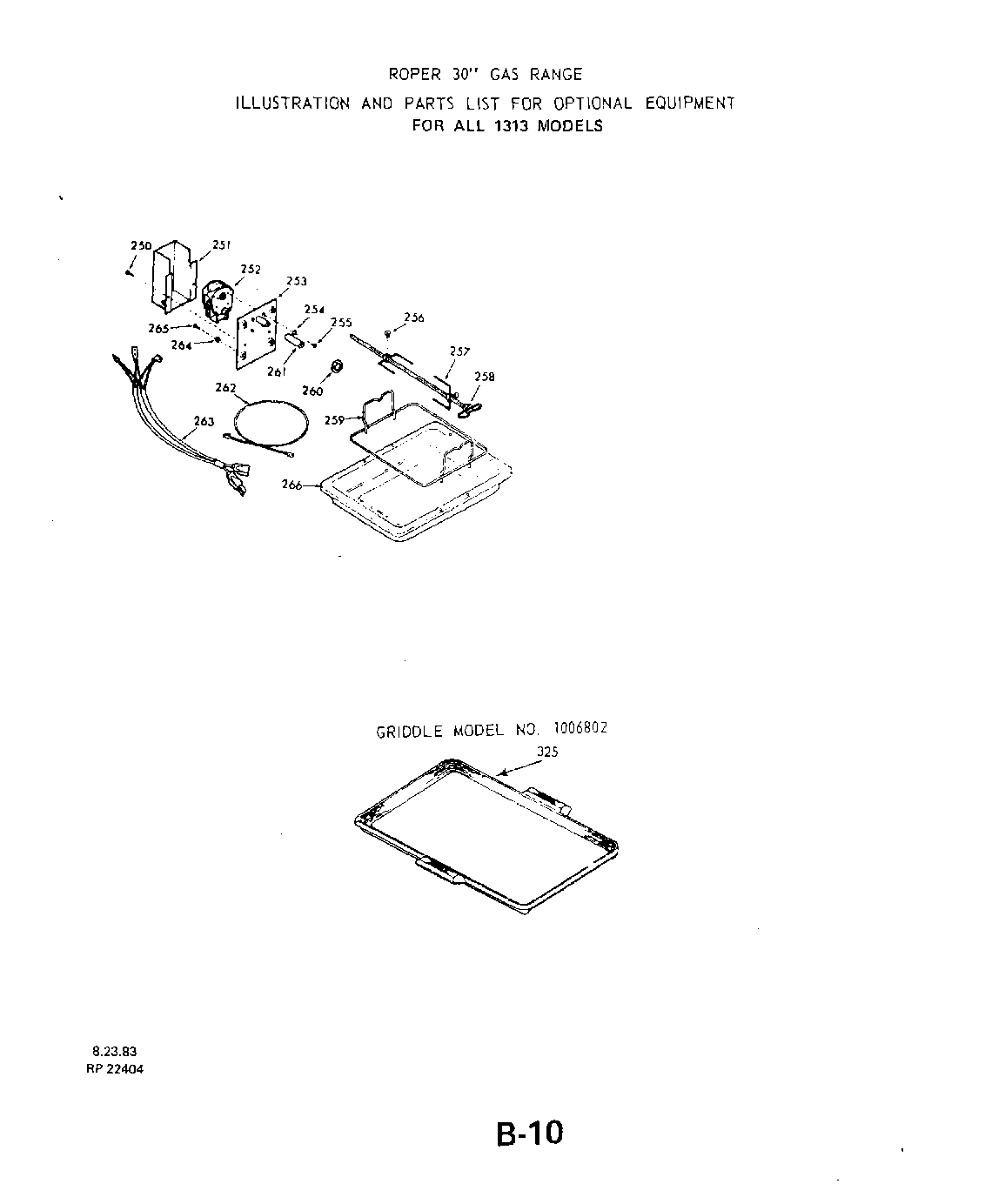

07 - ROTISSERIE , GRIDDLE

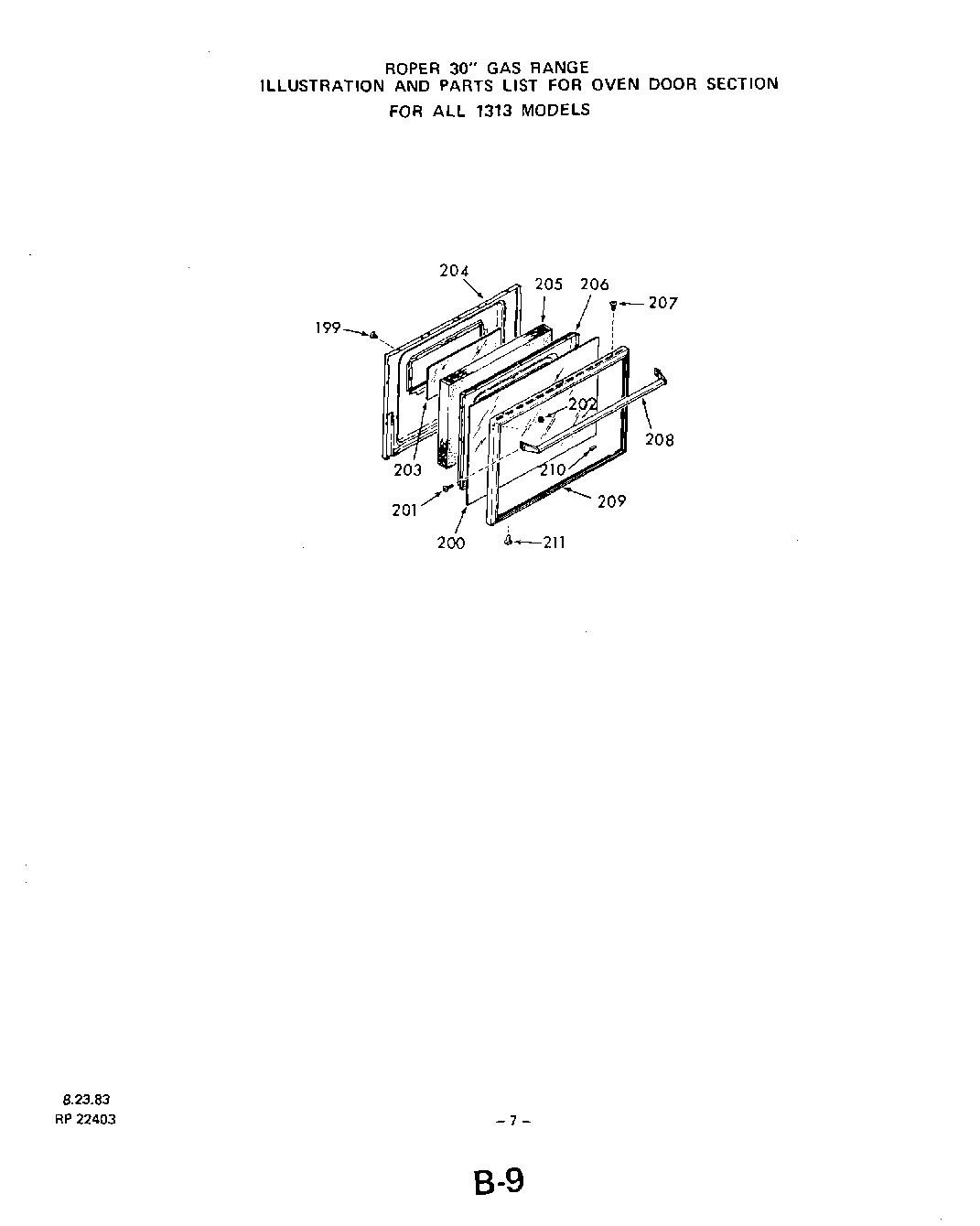

06 - OVEN DOOR

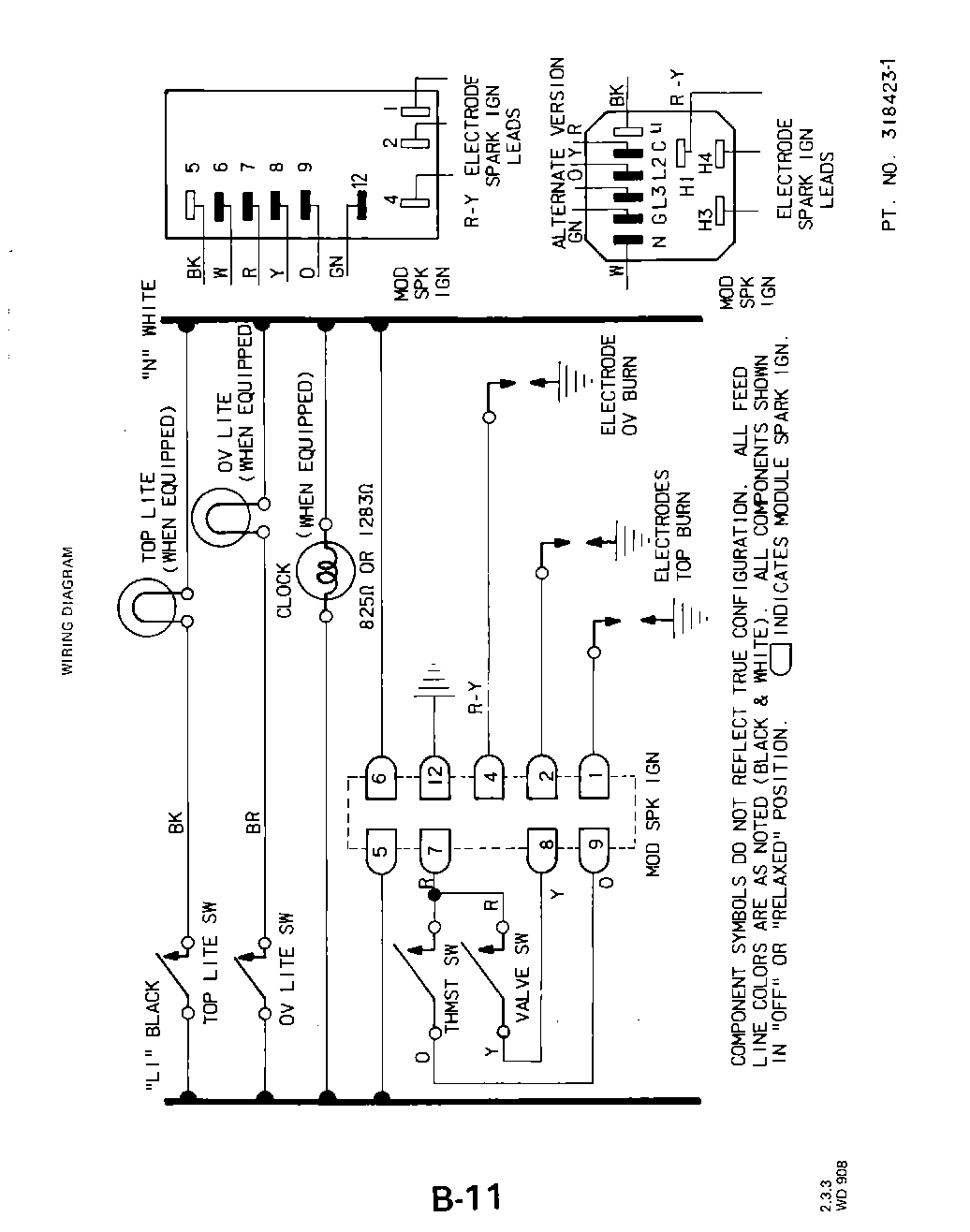

08 - WIRING DIAGRAM

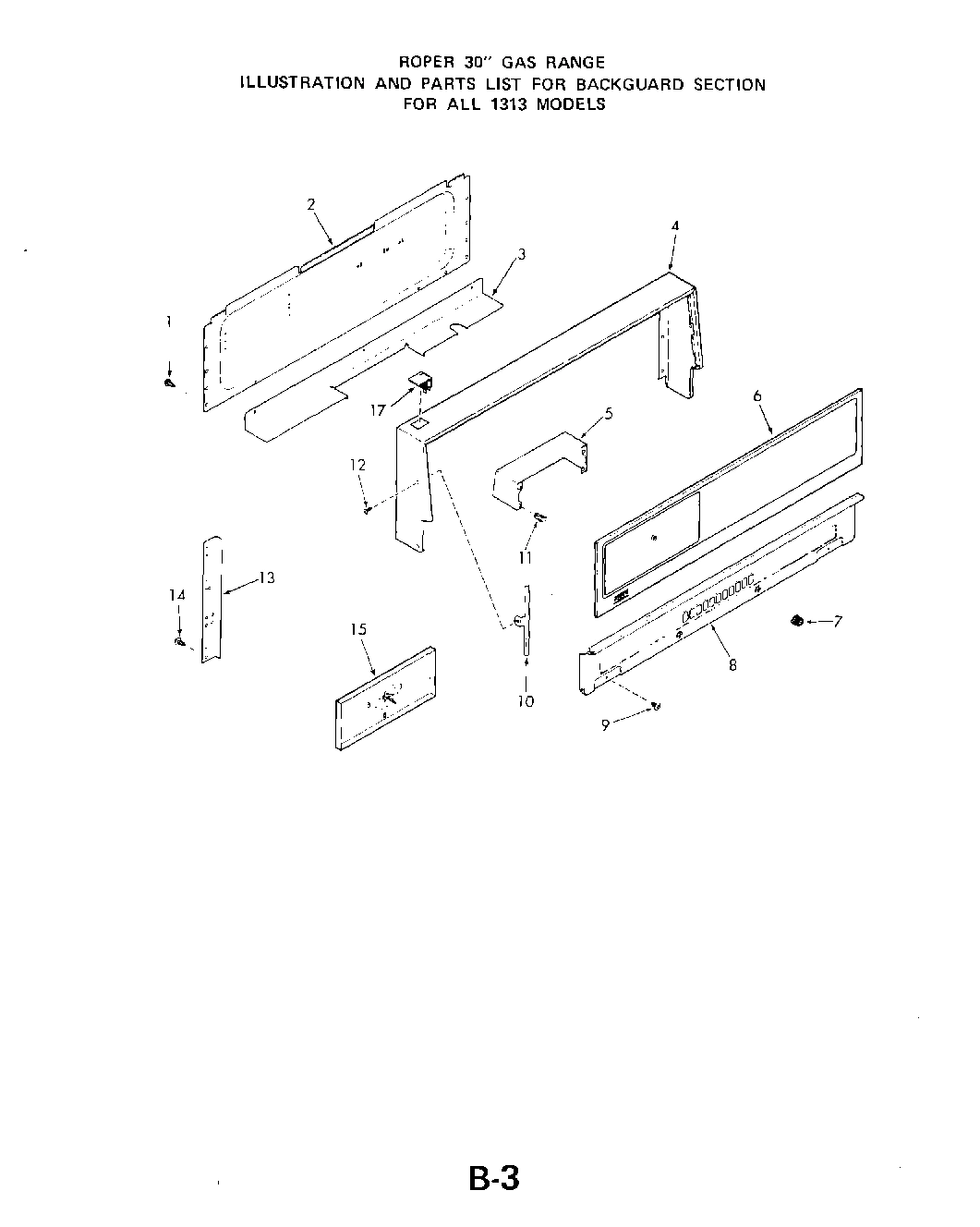

02 - BACKGUARD

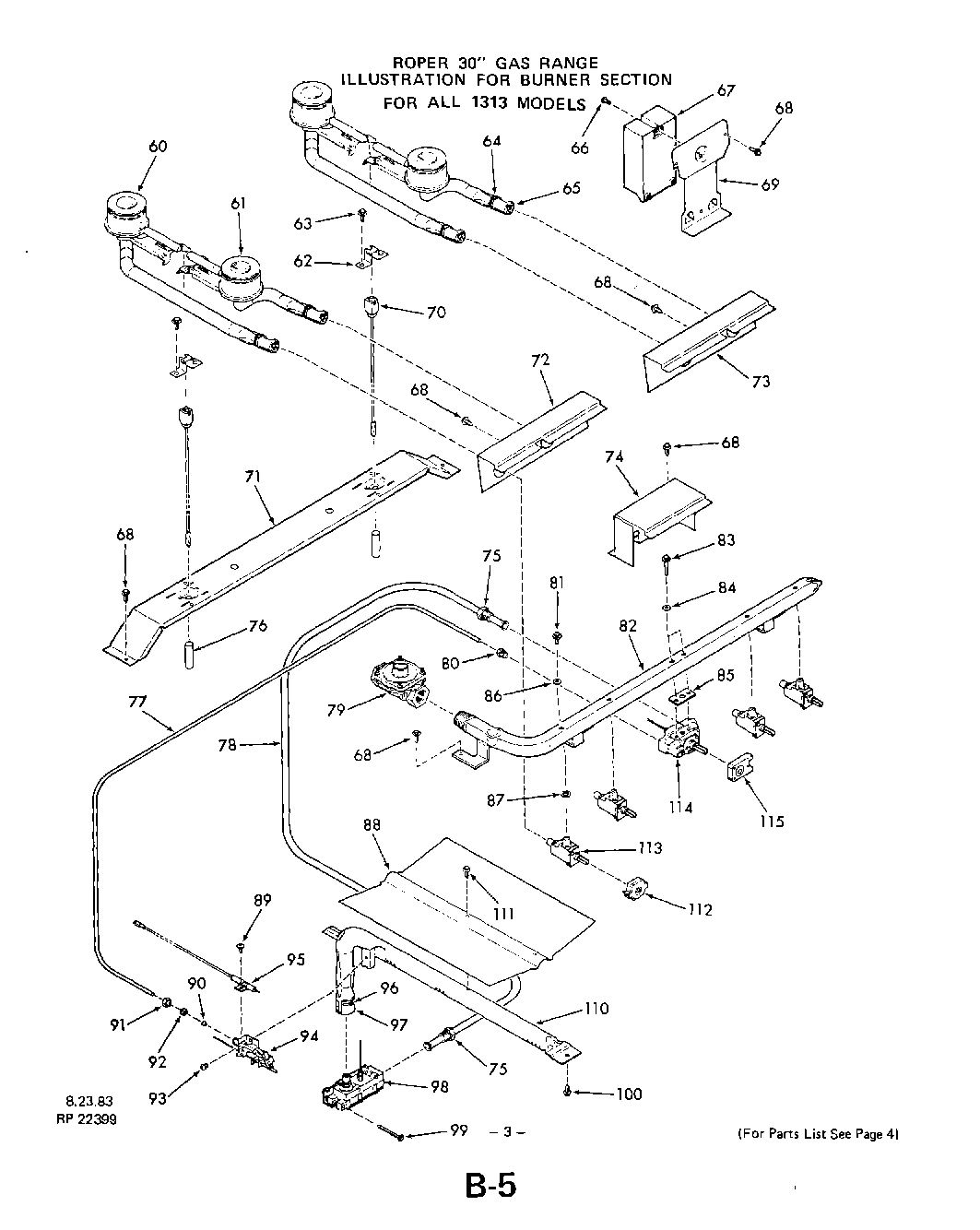

04 - BURNER
Common parts from model Whirlpool 1313^0A GAS RANGE
xSwitch (For Key No. 252) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8000A86 Contact Us For Availability
2
Wire Cover-Backguard WPL 323295 Contact Us For Availability
3
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
4
Frame-Backguard WPL 307407 Contact Us For Availability
5
Mounting Bracket-Clock WPL 293560 Contact Us For Availability
6
Glass-Backguard WPL 322806 Contact Us For Availability
7
Knob-Clock WPL 294810 Contact Us For Availability
8
Front-Backguard Bottom WPL 307717 Contact Us For Availability
10
End Trim-Backguard Glass (Lt or Rt) WPL 299705 Contact Us For Availability
11
Tubular Clip WPL 293577 Contact Us For Availability
12
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
13
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
15
Clock w/4 Hr.Timer WPL 322804 Contact Us For Availability
17
Switch-Oven Light WPL 308974 Contact Us For Availability
29
Spill Bowl (4 Req) All 13132A Models WPL 322888 Contact Us For Availability
30
Retainer-Main Top (Lt. or Rt.) WPL 301672 Contact Us For Availability
31
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
32
Top Grate (4 Required) WPL 316786 Contact Us For Availability
33
Main Top (White) WPL 316813 Contact Us For Availability
33
Main Top (Almond) WPL 316814 Contact Us For Availability
33
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
33
Main Top (Avocado) WPL 316816 Contact Us For Availability
33
Main Top (Coffee) WPL 316817 Contact Us For Availability
34
Washer WPL 99279 Contact Us For Availability
35
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
39
End Cap-Manifold Panel (Left) WPL 318258 Contact Us For Availability
39
End Cap-Manifold Panel (Right) WPL 318259 Contact Us For Availability
40
Catch - Main Top Strike WPL 24667 Contact Us For Availability
41
Manifold Panel WPL 322807 Contact Us For Availability
42
Knob-Gas Valve (4 Required) WPL 322502 Contact Us For Availability
43
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
44
Burner Box Bottom WPL 320408 Contact Us For Availability
46
Clip WPL 285945 Contact Us For Availability
48
Support-Main Top WPL 315379 Contact Us For Availability
49
Trim-Manifold Panel WPL 322808 Contact Us For Availability
60
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310197 Contact Us For Availability
61
Front Top Burner-Lt. or Rt. (Inc`s 64 & 65) WPL 310196 Contact Us For Availability
62
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
64
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
65
Air Shutter WPL 301910 Contact Us For Availability
66
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
67
Module - Spark Igniter WPL 326136 Contact Us For Availability
69
Support-Spark Igniter WPL 318439 Contact Us For Availability
70
Electrode-Spark Igniter (Left) WPL 312455 Contact Us For Availability
70
Electrode Spark Igniter (Right) WPL 312598 Contact Us For Availability
71
Support-Top Burner WPL 313375 Contact Us For Availability
72
Valve Cover-Lt.-All 13130A Models WPL 321172 Contact Us For Availability
73
Valve Cover-Rt.-All 13130A Models WPL 321170 Contact Us For Availability
74
Wire Cover-Ov. Thmst.-All 13130A Models WPL 318460 Contact Us For Availability
75
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
76
Sleeve-Igniter Wire (Lt. or Rt.) WPL 314132 Contact Us For Availability
77
Tubing 3/16`` WPL 322446 Contact Us For Availability
78
Tubing 3/8`` WPL 295037 Contact Us For Availability
79
Pressure Regulator WPL 324529 Contact Us For Availability
80
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
81
Mounting Screw (Inc`s 86) WPL 311455 Contact Us For Availability
82
Manifold Pipe WPL 318481 Contact Us For Availability
83
Mounting Screw (2 Req. for 114) WPL 318478 Contact Us For Availability
84
Gasket (For 83) WPL 318658 Contact Us For Availability
85
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
86
Gasket (For 81) WPL 304241 Contact Us For Availability
87
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
88
Baffle - Oven Burner WPL 302729 Contact Us For Availability
89
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
90
Orifice Cup Only (For 94) WPL 318485 Contact Us For Availability
91
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
92
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
93
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
94
Pilot Only (Inc`s 90) WPL 318486 Contact Us For Availability
95
Electrode - Oven Spark Igniter WPL 318431 Contact Us For Availability
96
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
97
Air Shutter WPL 312988 Contact Us For Availability
98
Control Valve (Inc`s 90 & 94) WPL 318482 Contact Us For Availability
99
Screw 10-32x2`` WPL 112365 Contact Us For Availability
110
Oven WPL 319255 Contact Us For Availability
111
WPL 316365 WPL 316365 Contact Us For Availability
112
WPL 310253 WPL 310253 Contact Us For Availability
113
WPL 324912 WPL 324912 Contact Us For Availability
114
WPL 318477 WPL 318477 Contact Us For Availability
115
WPL 318432 WPL 318432 Contact Us For Availability
129
Support-Flue Deflector WPL 301624 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Spacer-Main Top WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 323084 Contact Us For Availability
133
Body Side (White-Left) WPL 323085 Contact Us For Availability
133
Body Side (Coffee-Right) WPL 323086 Contact Us For Availability
133
Body Side (Coffee-Left) WPL 323087 Contact Us For Availability
133
Body Side (Avocado-Right) WPL 323088 Contact Us For Availability
133
Body Side (Avocado-Left) WPL 323089 Contact Us For Availability
133
Body Side (Golden Wheat-Right) WPL 323090 Contact Us For Availability
133
Body Side (Golden Wheat-Left) WPL 323091 Contact Us For Availability
133
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
133
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 326125 Contact Us For Availability
135
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
136
Shoulder Rivet WPL 70275 Contact Us For Availability
137
Broiler Drawer Guide (Inc`s. Keys 136 & 140) WPL 296327 Contact Us For Availability
140
Roller WPL 69006 Contact Us For Availability
141
Broiler Drawer (Inc`s. 136 & 140) WPL 303904 Contact Us For Availability
142
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
142
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
143
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
144
Broiler Pan Grid WPL 313071 Contact Us For Availability
145
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
146
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
147
Oven Body WPL 322913 Contact Us For Availability
148
Insulation - Oven Back WPL 296140 Contact Us For Availability
149
Main Back WPL 322910 Contact Us For Availability
150
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
151
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
152
Flue Deflector WPL 300917 Contact Us For Availability
153
Clip WPL 106767 Contact Us For Availability
155
Range Service Cord WPL 235822 Contact Us For Availability
156
Wire Shield WPL 318443 Contact Us For Availability
157
Disconnect WPL 232150 Contact Us For Availability
158
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
161
Thermostat Bulb Cli WPL 115533 Contact Us For Availability
162
WPL 296097 WPL 296097 Contact Us For Availability
163
WPL 303963 WPL 303963 Contact Us For Availability
165
WPL 290171 WPL 290171 Contact Us For Availability
166
WPL 67017 WPL 67017 Contact Us For Availability
167
WPL 305064 WPL 305064 Contact Us For Availability
168
WPL 296124 WPL 296124 Contact Us For Availability
168
WPL 296125 WPL 296125 Contact Us For Availability
169
WPL 21067 WPL 21067 Contact Us For Availability
170
WPL 292240 WPL 292240 Contact Us For Availability
171
WPL 302343 WPL 302343 Contact Us For Availability
172
WPL 296131 WPL 296131 Contact Us For Availability
172
WPL 308346 WPL 308346 Contact Us For Availability
172
WPL 308975 WPL 308975 Contact Us For Availability
172
WPL 308976 WPL 308976 Contact Us For Availability
172
WPL 308977 WPL 308977 Contact Us For Availability
173
WPL 296137 WPL 296137 Contact Us For Availability
175
WPL 296332 WPL 296332 Contact Us For Availability
177
WPL 239113 WPL 239113 Contact Us For Availability
178
WPL 314573 WPL 314573 Contact Us For Availability
179
WPL 314574 WPL 314574 Contact Us For Availability
180
WPL 316994 WPL 316994 Contact Us For Availability
181
WPL 111257 WPL 111257 Contact Us For Availability
182
WPL 87883 WPL 87883 Contact Us For Availability
183
WPL 296069 WPL 296069 Contact Us For Availability
184
WPL 305408 WPL 305408 Contact Us For Availability
185
WPL 305409 WPL 305409 Contact Us For Availability
200
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
201
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
202
Keps Nut 8-32 WPL 239764 Contact Us For Availability
203
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
204
Lining-Oven Door WPL 296205 Contact Us For Availability
205
Insulation WPL 303556 Contact Us For Availability
206
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
207
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
208
Handle-Oven Door WPL 303342 Contact Us For Availability
209
Frame-Oven Door WPL 296473 Contact Us For Availability
210
Cushion-Door Glass (3 Required) WPL 112370 Contact Us For Availability
211
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
211
Sw.-Gas Valve-All 13130A Models WPL 322226 Contact Us For Availability
211
Sw.-Gas Valve-All 13131A & 2A Models WPL 326869 Contact Us For Availability
250
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
251
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
252
Rotisserie Motor WPL 106575 Contact Us For Availability
253
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
254
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
255
Screw 8-32 x 3/8`` WPL 87860 Contact Us For Availability
256
Thumbscrew WPL 70287 Contact Us For Availability
257
Skewer WPL 88433 Contact Us For Availability
258
Rotisserie Spit WPL 100092 Contact Us For Availability
259
Spit Support WPL 232137 Contact Us For Availability
260
Plug Button WPL 100095 Contact Us For Availability
261
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & PiggyBa WPL 291284 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
262
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
263
Rotisserie Cord WPL 282924 Contact Us For Availability
264
Lockwasher WPL 69603 Contact Us For Availability
266
Rotisserie Pan WPL 291397 Contact Us For Availability
325
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
